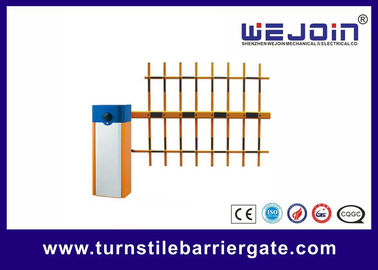

110 / 220v Vehicle Barrier Gate With CE Approval

Informacion basica
Lugar de origen: Shenzhen, China
Nombre de la marca: WEJOIN
Certificación: CE,ISO,SGS
Número de modelo: WJDZ101
Cantidad de orden mínima: 1 UNIDAD
Precio: negotiation
Detalles de empaquetado: cartón, caja de madera
Tiempo de entrega: 1-20 días
Condiciones de pago: Western union T/T, L/C,
Capacidad de la fuente: 5000 unidades/weeke
Información detallada
Alta luz:

parking barrier gates

,

car park barrier systems


Descripción de producto



110 / 220v Vehicle Barrier Gate With CE Approval





Quick Detail:



  • Name:Vehicle Barrier Gate
  • Application:resident area
  • Certificate:CE, ISO,
  • Speed:1s,3s,6s
  • Feature:Auto-closing
  • Rated Power:80W
  • Voltage:AC220V, AC110V





Description:



Model Selection and Differences



Model Boom Shape Max Boom Length Speed
WJDZ10116 Straight boom 6m 6 seconds
WJDZ10113 Straight boom 4.5m 3 seconds
WJDZ10111 Straight boom 3m 1 second
WJDZ10126 90 degree, Articulated boom 5m 6 seconds
WJDZ10123 90 degree, Articulated boom 3m 3 seconds
WJDZ10136 180 degree, Articulated boom 5m 6 seconds
WJDZ10133 180 degree, Articulated boom 3m 3 seconds
WJDZ10146 Two-level, fence boom 4.5m 6 seconds
WJDZ10156 Three level, fence boom 4m 6 seconds





Functions & Features:



1. RS485 Communication Module is compatible

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Reversing on obstacle

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. Manual release device to operate the barrier when power off

8.Double safety limit switch/motor





Applications:



Traffic Parking Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for parking system,school, factory gate,bus station and so on.





Specifications:



Model WJDZ101
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Max boom length 8m
Speed 1S,3s,6s
Net weight 60kgs





Why to choose WEJOIN Vehicle Barrier Gate?



1. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

2.Vehicle  Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3.Vehicle  Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. Vehicle Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on

5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.



Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters
