| Lugar de origen: | China |
|---|---|
| Nombre de la marca: | WEJOIN |
| Certificación: | CE, ISO, |
| Número de modelo: | WJTB103 |
| Cantidad de orden mínima: | 1PC |
| Precio: | negotiation |
| Detalles de empaquetado: | CAJA DE MADERA |
| Tiempo de entrega: | 5-10 días |
| Condiciones de pago: | Lanzamiento del Telex, L/C, Western Union |
| Capacidad de la fuente: | 50pcs/semana |
| Grado de la protección: | IP 32 | Plazo de expedición: | 7 días workiing |
|---|---|---|---|
| Tiempo de la abertura: | 1s | ||
| Alta luz: | Sistemas de la puerta de velocidad,control de acceso peatonal de la puerta |
||
Quick Opening Access Swing Barrier Gate With Arm Length Is 500-900mm
Quick Detail:
Description:
1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.
3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.
4. Fourthly, WEJOIN swing barriers have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable.
5. Fifthly, WEJOIN swing barriers Alarm for unauthorized access and no accee against passenger flow
6. Sixthly, WEJOIN swing barriers can be integrated with traffic light indicating passenger access
Specifications
|
Model Item |

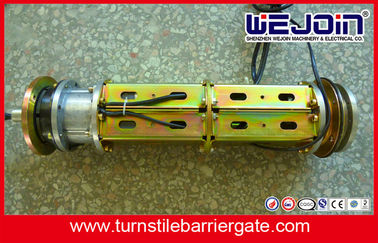

Swing Barrier Mechanism |
| Mechanism Dimension | 108*450mm |
| Working Environment | Indoor / Outdoor (Shelter) |
| Arm Length(Optional) | 500-900mm |
| Voltage | 220V+-15% or 110V+-15% |
| Driving Motor | 24V Brush DC Motor |
| Swing Direction | Single or Bidirectional Operation are Available |
| Input Interface | Dry Contact and Switch Signal Connection |
| Time for Opening or Closing | 1 second |
| Starting time after power on | 3 seconds |
| Transit Speed | 30~40 persons/min |
| Motro Material | Steel and Aluminum Alloy |
| Working Temperature | —25°C~50°C |
| Relative Humidity | ≤90%, no condensation |
