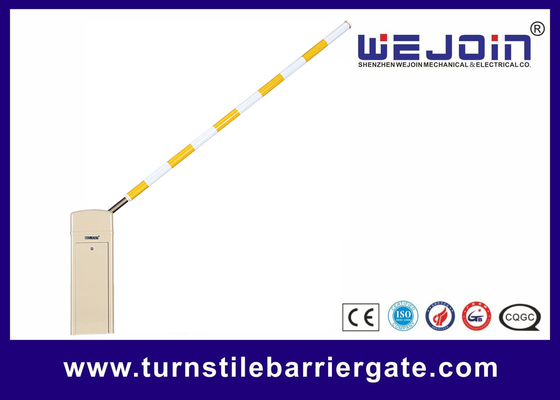

High-Grade Residential Area Access Control Black Color 6m Straight Aluminum Arm Barrier Gate
Parking Barrier Gate Technical Data
Model: WJDZ04VF (speed 1.5 - 6s adjustable)
Running Speed: 1.5 - 6s,
Boom-Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence
Max Boom Length: 3 - 6m, 5m, 4m, 4.5m, 4m
Housing Dimension: 336*325*1030MM, 335*285*920MM
Input Voltage: AC100 - 265V
Frequency: 50/60HZ
Motor Voltage: DC24V
Enclosure Rating: IP54
Working Temperature: -30℃ ~ +70℃
MTBF: 4000000 times
Traffic Flow Application: 3000 times/24 hours
Max Motor Power: 180W
Max Motor Speed: 500r/min
Max Torque: 260N.m
Parking Barrier Gate Functions & Features
1. Motor Functions & Features Self - developed DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
2. Control System Functions & Features DC variable - frequency control system, precise control, more flexible running, less mechanical impact and longer service life.
3. Auto - reversing on Obstruction Functions & Features Sensitive, responsive, safe and reliable.
4. Item Control Panel Functions & Features Large LCD screen display, English visual menu, simple maintenance and easy operation.
5. Remote Controller Functions & Features 433MHZ, simple to add remote controllers.
6. Operation during Power - off Functions & Features Turn the handwheel or lift the boom manually to realize the boom up and down, and it can also be powered by a DC24V battery, or open one time by a super capacitor backup.
7. Motorcade Passing, Counting, Auto - aging Test, Delay Auto - closing, Relay Signal Output, RS485 Communication Functions & Features Support
8. Loop Detector, Infrared Photocell, Radar Functions & Features Optional
9. Warranty Period Functions & Features 24 months for motor and control board
Mechanism Installation Direction Change
This barrier mechanism can be both left-installed and right-installed. The users can change the installation direction according to the actual situation. We will take the left-installed barrier mechanism as an example, and the operation steps for changing to the right-installed are as follows:
1. Take out the 10MM screw by turning 8MM Allen wrench counterclockwise
2. Push out the boom holder by turning wrench clockwise with a 14MM*150 screw
3. Turn the mechanism 180 degrees vertically
4. Put the mechanism into the cabinet
5. Assemble the boom holder back, and fix the 10MM screw by turning 8MM Allen wrench clockwise
Barrier Gate Spring Selection Table
|
Boom Type
|
Boom Length
(Meters: M)
|
Spring Diameter
Φ (mm)
|
Quantity of Springs
(pieces)
|
|
Straight Boom without Rubber
|
6≥L≥5.8
|
3.8
|
5
|
|
5.7≥L＞5
|
3.8
|
4
|
|
5≥L≥3.8
|
3.8
|
3
|
|
3.7≥L≥2.8
|
3.8
|
2
|
|
Straight Boom with Rubber
|
6≥L≥5.5
|
3.8
|
5
|
|
5.4≥L≥4.8
|
3.8
|
4
|
|
4.7≥L≥3.8
|
3.8
|
3
|
|
3.7≥L≥2.8
|
3.8
|
2
|
