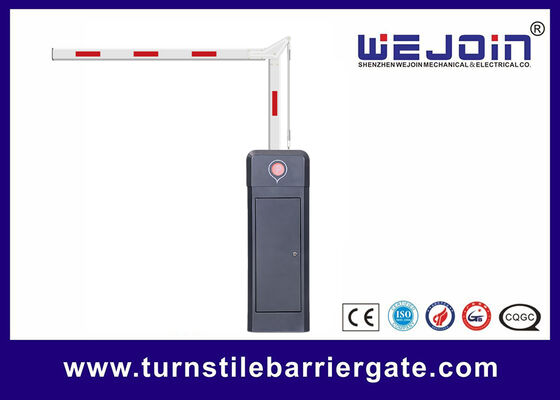

Name: 100% Duty Cycle Nice electromechanical 5m 90 Degree Folding Arm for High-Grade Residential Area
Brand: Shenzhen Wejoin Mechanical & Electrical Co.
SKU: CB01VF-I
Price: 475.00 USD
Availability: InStock

100% Duty Cycle Nice electromechanical 5m 90 Degree Folding Arm for High-Grade Residential Area

50 set

MOQ

Negociable

Precio

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Tipo de pluma: Auge recto/auge flotante

Voltaje: CA 110V-265V

Longitud del auge: Max 6m (personalizado)

Garantía: 2 años

Color de la carcasa: Oro

Aplicación: Estacionamiento

Resaltar:

5m folding arm barrier gate

90 degree electromechanical gate arm

residential automatic barrier gate

Información básica

Lugar de origen: Porcelana

Nombre de la marca: WEJOIN

Certificación: CE ISO

Número de modelo: CB01VF-I

Pago y Envío Términos

Detalles de empaquetado: Caja de cartón

Tiempo de entrega: 15 días hábiles después del pago recibido

Condiciones de pago: T/T

Capacidad de la fuente: 10000 JUEGOS/MES

Galería

100% Duty Cycle Nice electromechanical 5m 90 Degree Folding Arm for High-Grade Residential Area

Descripción de producto

100% Duty Cycle Nice electromechanical 5m 90 Degree Folding Arm for High-Grade Residential Area

Barrier Gate Controller Interface Explanations

Item	Explanation
Wire Control Interface	This interface is available for parking system, also available for external controller to control barrier gate. UP: Short circuit “UP” and “GND” Down: Short circuit “Down” and “GND” Stop: Short circuit “Stop” and “GND”
Anti-smashing Interface	Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND” during boom down. Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.
RS485 Communication Interface	It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.
DC12V Power Output	Provide 1A current output, available for radar or small light strips.

Boom Barrier Gate Functions & Features

1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times.

2. With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.

3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. Optional Bluetooth module, convenient debugging of barriers through small programs.

6. Large LCD screen display, English visual menu, easy function selection and debugging.

7. Left-installation and right-installation can be changed.

Vehicle Barrier Gate Technical Data

Model: WJCB01VF-H, WJCB01VF-I
Running Speed: 1-4S, 2-6S
Boom Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence
Max Boom Length: 8M
Input Voltage: AC100-265V
Frequency: 50/60HZ
Motor Voltage: DC24V
Enclosure Rating: IP54
Working Temperature: -30°C ~ +70°C
MTBF: 6,000,000 times
Traffic Flow Application: 24 hours uninterrupted operation
Max Motor Power: 240W, 180W
Max Motor Speed: 500r/min, 360r/min
Max Torque: 280N.m, 320N.m
